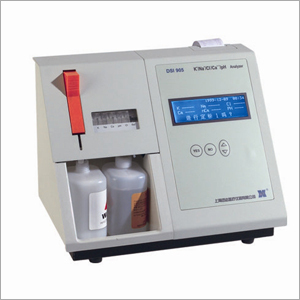

Xunda Electrolyte Analyzer

Xunda Electrolyte Analyzer
Xunda Electrolyte Analyzer
Product Code : EA 23
Brand Name : XUNDA
Product Description
Xunda Electrolyte Analyser

The DSI introduces international advanced ion-selective electrode technology. It is able to test the potassium (K+), Sodium (Na+), Chloride (Cl-), ionized calcium (iCa++), standardized ionized Calcium (nCa++), pH and TCO2 with Reliability, practicality and convenience.
  • DSI 903B® Electrolyte Analyzer: Test Potassium, Sodium, Chloride
  • DSI 905® Electrolyte Analyzer: Test Potassium, Sodium, Chloride, Calcium, pH
  • DSI 907® Total Carbon Dioxide Analyzer: Test total CO2
Technological Characteristics
  • It uses the microprocessor technology. The working-procedure of the instrument is completely controlled by the software.
  • Big LCD display. Users friendly and interactive operating interface. Extremely simple operating procedure.
  • It takes 25 seconds from absorbing the sample to showing the results. The results are displayed in unit of mmol/L.
  • Transparent testing cavity makes it easy to remove the air bubbles or the blood clots.
  • 24 hours continuously power on. It will automatically calibrate every 2 hours. Samples are ready to test.
  • It has quality-control programs to satisfy the QC standards of different locals. It can also carry on the quality-control data processing, and calculate the mean values of X, SD and CV.
  • Testing results can both be shown on the LCD, and be printed out in the form of
  • The instrument has RS-232 standard interface and can be connected with exterior computers.
  • It can store sample test data and conveniently query.
Specifications

Measuring parameter

Measuring range

Measuring Precision

K

0.50-9.99 mmol/L

CV<1.0%

Na

80.0-200.0 mmol/L

CV<1.0%

Cl

50.0-200.0 mmol/L

CV<1.0%

Ca

0.10-4.00 mmol/L

CV<1.0%

pH

6.50-8.50

CV<1.0%

TCO2

3.0-60.0 mmol/L

CV<3.0%


Sample volume

Sample volume 100μL; Drift calibrating solution 150μL; Slope calibrating solution 150μL; Washing solution 450μL

Sample types

Plasma, serum, whole blood, etc.

Working environment

Temperature 5-40oC, Relative humidity 10-93%

Power supply

AC220V+10%, 50Hz, 60VA

Dimension

377mm x 230mm x 287mm

Weight

7kg(host machine)
