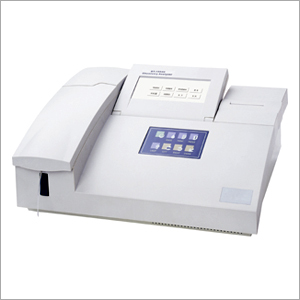

Semi Automatic Chemistry Analyzer

Semi Automatic Chemistry Analyzer
Semi Automatic Chemistry Analyzer
Product Code : Rayto 1904C
Brand Name : RAYTO
Product Description
Rayto 1904C Semi Auto Analyzer
  • Bichromatic optic system with 7 wavelengths
  • Preprogrammed calculation for kinetic and endpoint assays
  • Large color LCD display, Win CE compatible operating system.
  • Support keyboard and mouse with USB interfaces
  • Convenient system update through SD card port
  • Automatic lamp sleeping
  • Temperature controlled flowcell : 25, 30, 37 degree celcius
  • Large memory to store 160 test parameters and up to 3500 samples results
  • Real time reaction curve display
  • Quality Control LJ curve
  • Multi-forms in result output including patient comprehensive report
Product Specifications
  • Photometric Range: -0.500 - 3.000 Abs.
  • Resolutions: 0.001 Abs (Displayed) and 0.0001 (Calculated)
  • Wavelengths: 340, 405, 500, 546, 578, 620, 670 nm and one more optional position
  • Wavelength Accuracy: +/- 1nm
  • Band Width: 8 nm
  • Aspiration Volume: 100 - 3000 microlitre
  • Cross contamination ratio: < 0.1 %
  • Memory: 160 test protocols, minimum 500 test results
  • Interface: RS-232, PSTN (Optional)
  • Flow Cell: 25 microlitre Metal -quartz
  • Temp. Controlled: 25, 30, 37, degree Celsius +/- 0.1
  • Display: 7'' color LCD
  • Input: Mouse and optional external keyboard
  • Output: Built-in printer or external printer (optional)
  • Net weight: 8 kg
  • Dimension (L x W x H): 460mm x 330mm x 140mm
  • Power Supply: AC 110V - 220 V +/- 10%, 50-60 Hz
