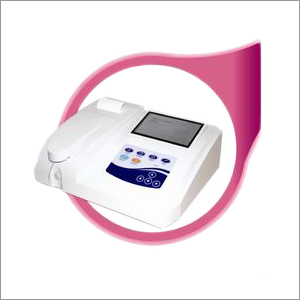

Semi Auto Biochemistry Analyzer

Semi Auto Biochemistry Analyzer
Semi Auto Biochemistry Analyzer
Product Code : Diachem-300
Product Description

Specification:-

The Semi Auto Biochemistry Analyzer measures biochemical indexes by analyzing blood and other body fluid, then combines with other clinical information, to help diagnose disease, evaluate organs function, identify disease gene and determine the norm for future therapy.

Features :
  • Based on the Linux operating system, color graphical interfaces, large and color LCD.
  • Operating with touch screen, function keys and external USB mouse or keyboard, which is simple and fast.
  • Multiple measurement methods (End point, Two-point, kinetics, double wavelength) are optional, and multiple calculation methods (factor, linear regression, curvilinear regression, etc.) are also optional.
  • Store 500 test items and 10000 test results; supply many methods of printing and many formats of report.
  • Each item can be set for two quality-control, automatically statistic and draw QC curve, store one year's QC data and QC chart, also can query and print.
  • Auto-dormancy for the lamp to prolong its life.
  • Power-off protective function to automatically save measurement results.
  • Seft-check function for alarming to light route, liquid route and machine components, etc.

Technical parameters :

Absorbency range

-0.3-3.0Abs

Resolution

0.001Abs(display),0.0001 Abs(inner calculation)

Light source

Halogen lamp

Wavelength

340,405,500,546,578,620nm + 2 free positions

Stability

<0.005A/30min

Half-bandwidth

<12 nm

Temperature control

Room Temperature, 25, 30, 37.

Temperature accuracy

+0.1

Colorimetric cell

30μl quartz flow cell

Injection

0~6000ul

Cross Contamination

<1.0%

Storage

500 test items and 10000 test results.

Interface

Standard RS232 interface, 4 USB interfaces, Ethernet interface

Display

7" color LCD

Print

Built-in high-speed thermal printer, and connect external printer.

Processor

Embedded high-speed processor

Weight

10kg

Dimension

410(L)×340(W)×150(H)mm

Power Supply

100~240VAC, 50HZ/60HZ
