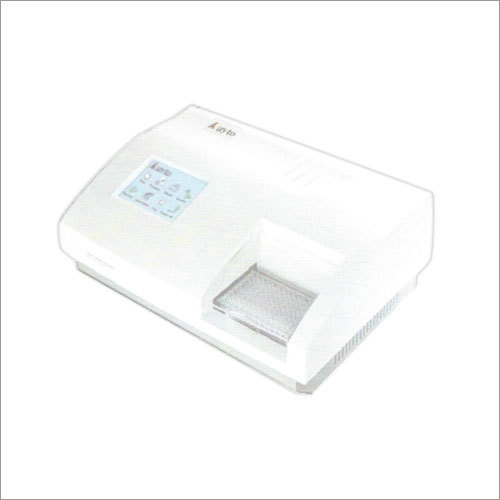

Elisa Microplate Reader

Elisa Microplate Reader
Elisa Microplate Reader
Product Code : RT-2100C
Brand Name : ELISA
Product Description


Specification :

Microplate able to read up to 96 wells, wavelength range 400-750 nm with absorbance range 0-3.0 abs, accuracy and linearity 1%, tungusten halogen lamp, fove filter capacity with interference of 405, 450, 490, & 630 on filter wheal, display 2x24 digit LCD, extensive on-board data analysis, curve fitting options as linear, cubic, quadratic, cubic spine, point to point assay & control validation, data transformation formulas, cut off & call criteria, memory, parallel. centronics for printer, power supply 230 VAC.

Features :

  • Bichromatic optic system with 4 wavelengths
  • 8-channel optic fibre system , get reading result in just 5 seconds.
  • Large LCD Display, WIN CE compatible operating system
  • Touch -screen or external mouse
  • Large memory to store 10000 results
  • Shaking plate feature
  • Performing 12 different tests in one plate
  • Multiforms in result output including patient comprehensive report
  • Easy Software upgrade by SD card

Product Specifications :

Photometric Range

0.000 - 4.000 Abs.


0.001 Abs (Displayed) and 0.0001 (Calculated)

Light Source

Halogen lamp, 8V/50W


405, 450, 492, 578, 630 nm and 4 more optional positions

Wavelength Accuracy

+/- 1nm

Band Width

8 nm

Calculation Method

ABS, % ABS, cutoff, linear, point to point, log, exponent, power regression


+/- 1% or +/- 0.005A

Reading speed

5 secs for 96 well plate (Single wavelength)

Shaking Plate

Shaking time and speed adjustable


100 tests, upto10000 test results


RS-232, PSTN (Optional)


6'' color LCD


Touch panel or Mouse


External printer (optional)

Net weight

8 kg

Dimension (L x W x H)

460mm x 330mm x 200mm

Power Supply

AC 110V - 220 V +/- 10%, 50-60 Hz
