Auto Hematology Analyzer

Auto Hematology Analyzer
Auto Hematology Analyzer
Product Code : RT-7600C
Brand Name : RAYTO
Product Description

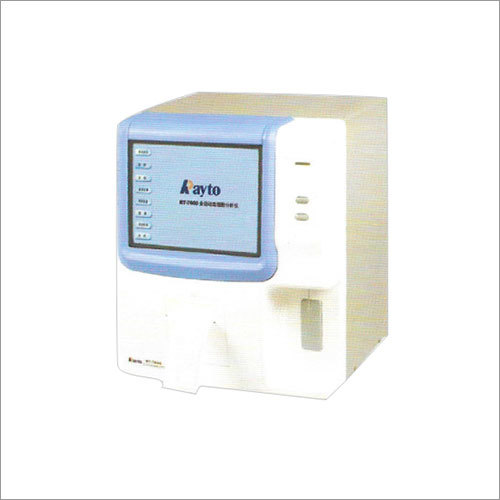

RT-7600 Auto Hematology Analyzer features a large color LCD display with touchscreen, 2 counting channels, 23 parameters including 3 histograms, large memory capacity, multi-format output of test results and 3 counting modes for whole blood, pre-diluted blood and peripheral blood. To remove the blockage in the blocking chamber in the reading chamber, it includes back flush, soaking and high-volt burning. It features a 3-door open design for maintenance and an external power supply adaptor to decrease electrical noises.

Technological parameter:

  • 3-part differentiation of WBC 20 parameters+3 histograms
  • Troughput : 60 tests per hour
  • 3 Counting mode: whole blood and pre-diluted
  • Sample volume : whole blood 9.8ul, pre-diluted 20ul.
  • 10.4” TFT color LCD with touch screen
  • Up to 35000 sample results (including histograms) can be stored
  • Built-out AC power adapter
  • Built-in thermal printer, optional external printer
  • Three QC modes : L-J QC, XB QC and X-R QC, all with QC chat, westguard rules.
  • Windows operating system, Multi-language software available on request

Technical Specification :

Parameters

WBC, LYM#, MON#, GRA#, LYM%, MON%, GRA% RBC, HGB, MCHC, MCH, MCV, RDW-CV, RDW-SD, HCT, PLT, MPV, PDW, PCT, P-LCR, Histograms for WBC, RBC and PLT

Principle

Electrical resistance for counting WBC, RBC and PLT

Sample Volume

Prediluted: 20uL, Whole Blood: 9.8μuL

Aperture Diameter

WBC 80um; RBC 50um

Throughput

60 samples per hour

Display

8.4' Color LCD, Resolution: 640X480

Alarms

Error messages

Input/Output

RS-232, USB, LAN, keyboard and mouse interface

Printout

Thermal printer, 55mm width paper, various printout formats, external printer optional

Operating Environment

Temperature: 15~35oC Humidity: 10%~90%

Power Requirement

AC 110-220V, 50/60Hz

Dimension LxWxH(mm)

436x363x367

Weight

18Kg
